Case Study - Revenue Operations

Contract-to-Cash Lifecycle Architecture

A stage-gated, governed C2C tracker integrating Salesforce and Smartsheet - clearing over $500K in payment backlog across Sales, Finance, and Operations.

SalesforceSmartsheetPower BIRevenue OperationsStage-Gated GovernancePower Platform

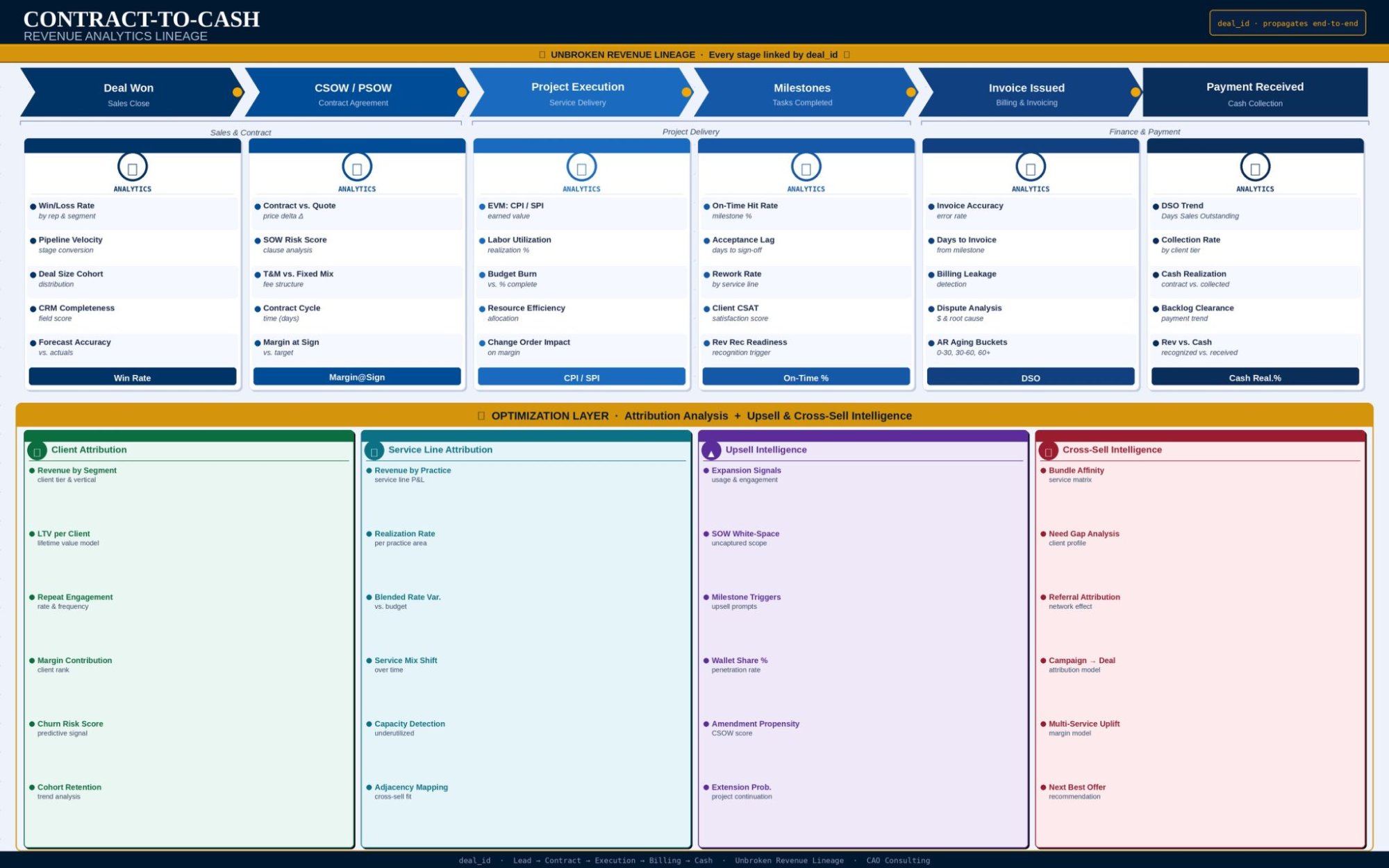

Contract-to-Cash Revenue Analytics Lineage
Revenue Analytics Lineage · deal_id propagates end-to-end
💰
My Role

Lead Architect & Implementation Owner

I led the end-to-end design and delivery of this Contract-to-Cash system — from mapping the full SOW-to-payment lifecycle with stakeholders across Sales, Finance, and Operations, to building the Smartsheet tracker, configuring automated stage-gate routing, designing the Salesforce integration, and delivering the executive pipeline dashboards. All architecture decisions, workflow logic, and tooling choices were made and implemented independently. The system cleared over $500K in stalled payment backlog within the first months of deployment.

Lifecycle Architecture Smartsheet Build Salesforce Integration Workflow Automation Executive Dashboards Cross-functional Alignment Revenue Operations
01 - Overview

System at a Glance

$500K+

Payment Backlog Cleared

Built and deployed a contract-to-cash workflow system spanning Sales, Finance, and Operations using Smartsheet and Power Platform - eliminating revenue leakage and accelerating milestone billing cycles.

🔗
Upstream Trigger
Salesforce CRM
Opportunity stage change
📋
System of Record
Smartsheet
1 row per engagement
🔒
Core Control
Stage-Gated Engine
Business-day cadence
📊
Visibility
Exec Dashboards
Pipeline + aging + exceptions
02 - Architecture Doc

Reference Architecture

Purpose

A reusable, client-safe reference architecture for a Contract-to-Cash (C2C) document lifecycle tracker that:

  • Ingests opportunity events from Salesforce
  • Uses Smartsheet as the system of record (one row per engagement)
  • Enforces stage-gated governance with business-day reminder cadence
  • Routes update requests by role and provides operational + executive visibility
  • Supports scaling via standardization and optional provisioning

Logical Layers

LayerPurposeComponents
Source + TriggerDetect lifecycle events and provide upstream metadataSalesforce Opportunity stage change; field mapping
Integration / HandshakeCreate/update a canonical record in SmartsheetAPI/middleware workflow; controlled form intake; idempotent upsert
System of RecordMaintain the golden row per engagement and lifecycle historySmartsheet master tracker; reference/lookup sheets
Workflow EngineEnforce stage gates, stop/skip logic, and lifecycle transitionsStage prerequisites; completion checkbox/date; validation rules
Scheduling LayerDrive follow-up cadence using business daysHelper-date columns; WORKDAY/NETWORKDAYS logic; holiday calendar
Automation LayerNotify and collect updates from owners based on roleAlerts; update requests; conditional routing; optional escalation
Visibility LayerProvide operational queues and executive reportingReports; dashboards; pipeline/aging views; exception widgets
ExtensibilityEnable analytics and cross-platform reportingData Shuttle; ODBC/API extracts; BI semantic model; Power BI

Data Model

  • Canonical keys: Opportunity ID (primary key), engagement/client identifiers, owner roles
  • Stage columns: Stage Status, Stage Date, Evidence link/attachment, Notes
  • Reference tables: owner lookup, role routing tables, optional holiday calendar
  • Audit readiness: evidence links and date-stamped milestone completion for traceability

Stage Gating and Lifecycle Controls

  • Prerequisites: a stage becomes active only when prior-stage conditions are met
  • Stop condition: reminders cease once the stage completion date is populated
  • Skip logic: if a stage is completed at intake, the workflow bypasses reminders and advances
  • Validation: required fields enforced at key gates

Scheduling and Reminder Cadence

  • Helper date: Next Stage Reminder (Auto) calculated with WORKDAY/NETWORKDAYS logic
  • Cadence: weekly business-day reminders until stage is completed
  • Holiday support: optional holiday table integrated into business-day calculations

Reporting and Dashboards

  • Operational action queues: overdue items, stuck stages, next reminder due, owner task lists
  • Executive dashboards: pipeline by stage, aging distribution, bottleneck hotspots, next actions by team
  • Performance metrics: cycle time per stage, SLA compliance, throughput trends
03 - Full Document

PDF Reference

Contract_to_Cash_Lifecycle_Architecture_Documentation.pdf
04 - Visual Artifacts

Dashboards and Architecture Diagrams

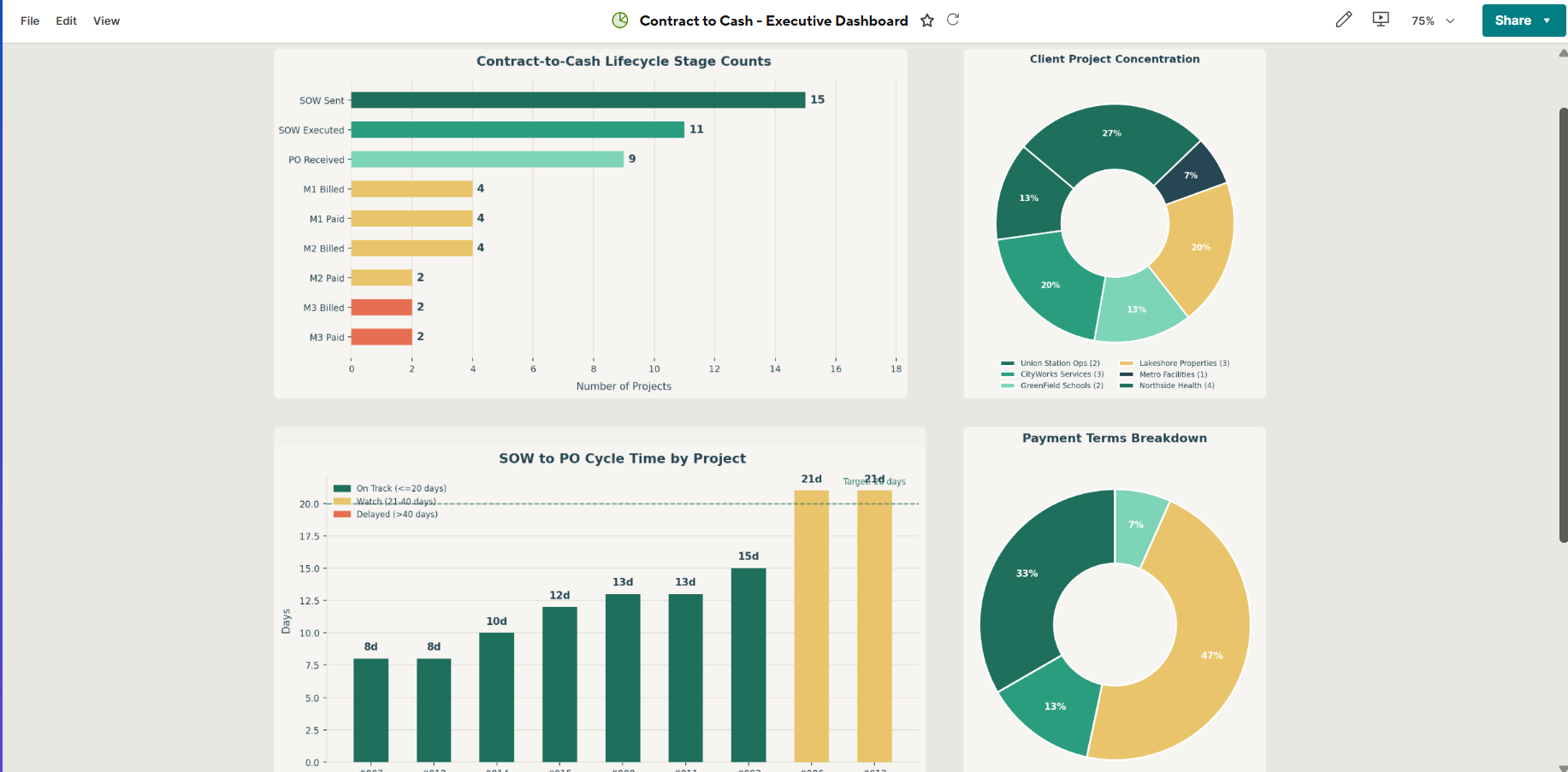

Contract-to-Cash Executive Dashboard
contract_cash_dashboard.png - Executive Dashboard

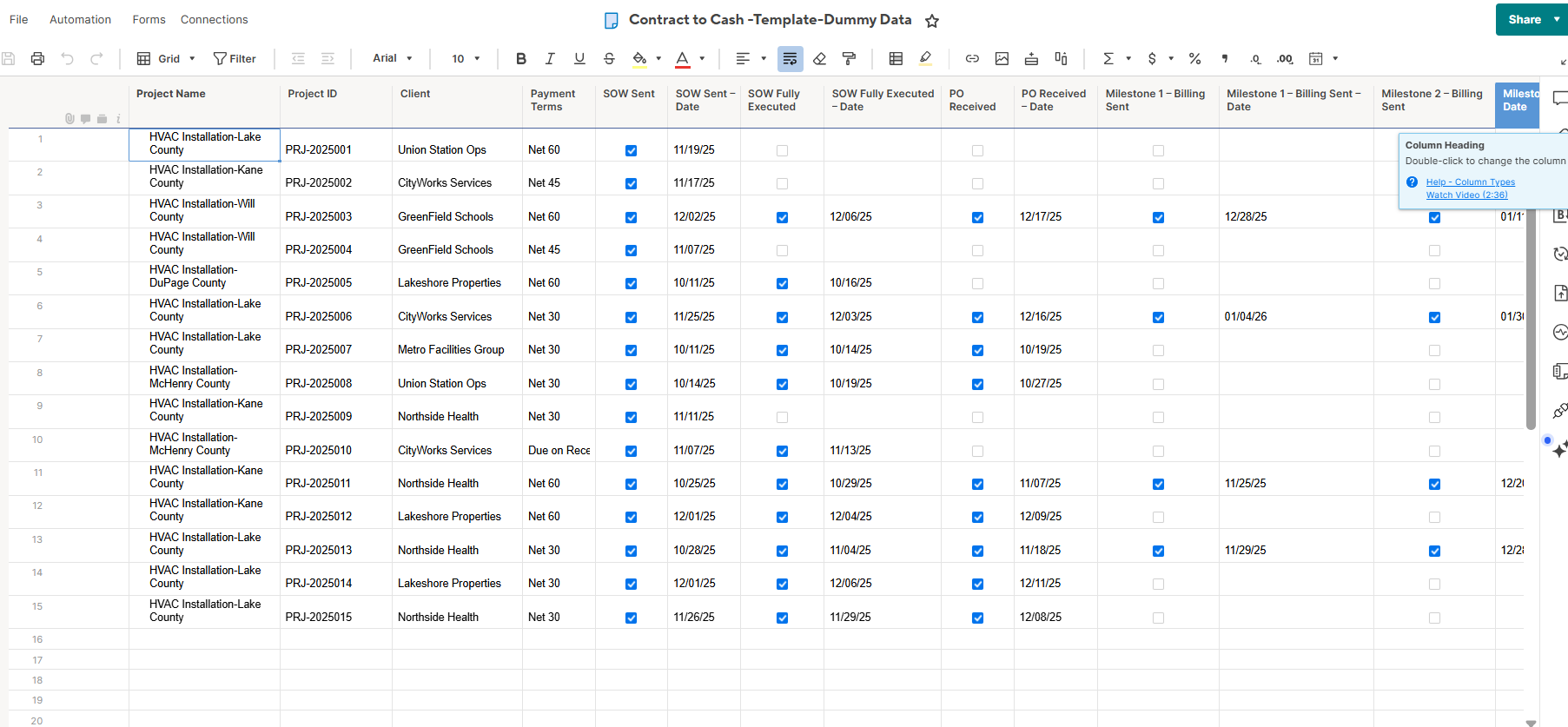

Contract-to-Cash Smartsheet Master Tracker
contract_2_cash_master.png - Smartsheet Master Tracker

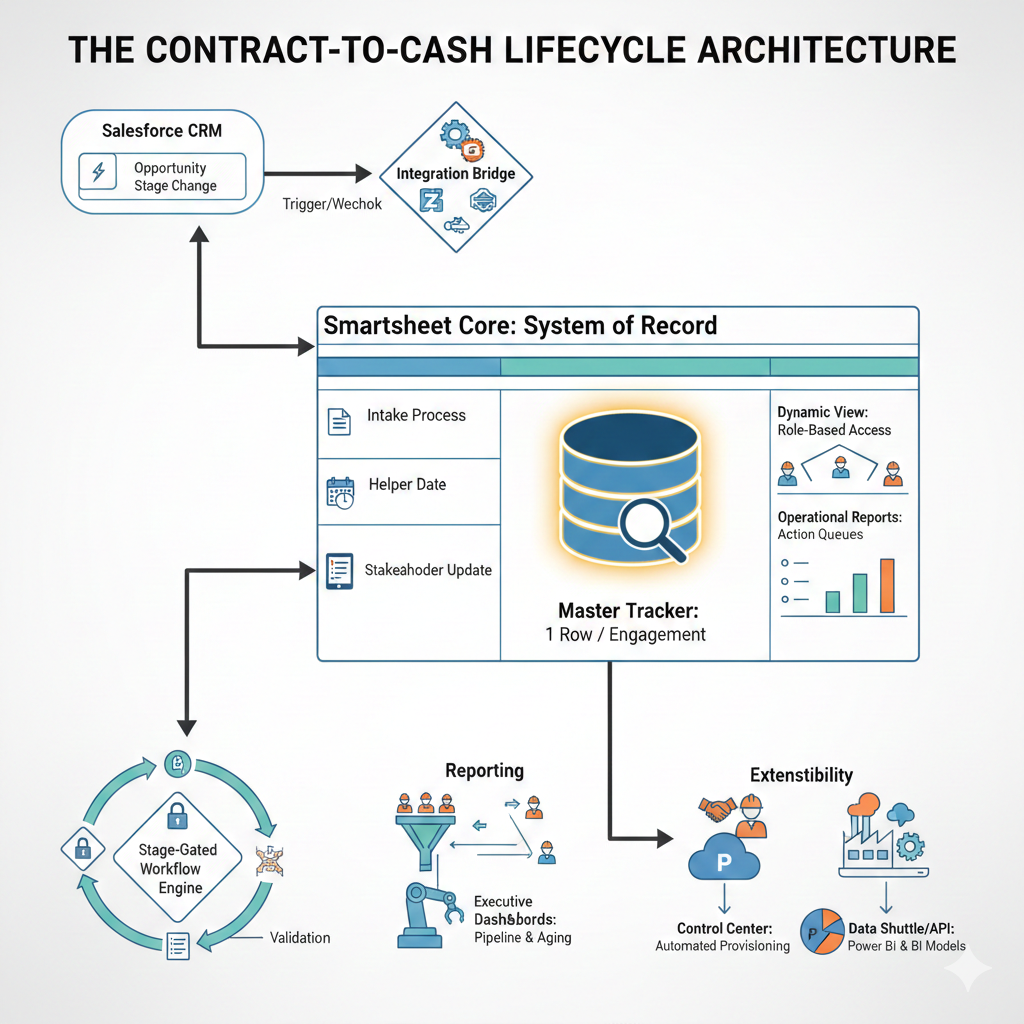

Lifecycle Architecture
Contract_to_Cash_Workflow_Visual.png - Lifecycle Architecture
05 - Flow Diagram

Live Architecture Diagram

flowchart TD A[Salesforce Opportunity stage changes] --> B[Integration Handshake API middleware] B --> C[Smartsheet Intake Form or upsert] C --> D[Smartsheet System of Record Master Tracker] D --> E[Stage-gated workflow engine] E --> F[Helper dates business-day] F --> G[Automation role routing] G --> H[Stakeholder updates Sales Delivery Finance] H --> D D --> I[Dynamic View WorkApps role-based access] D --> J[Operational reports action queues] J --> K[Executive dashboards pipeline and aging] D --> L[Control Center optional provisioning] D --> M[Data Shuttle ODBC API to BI model optional]
06 - Implementation

Implementation Checklist
